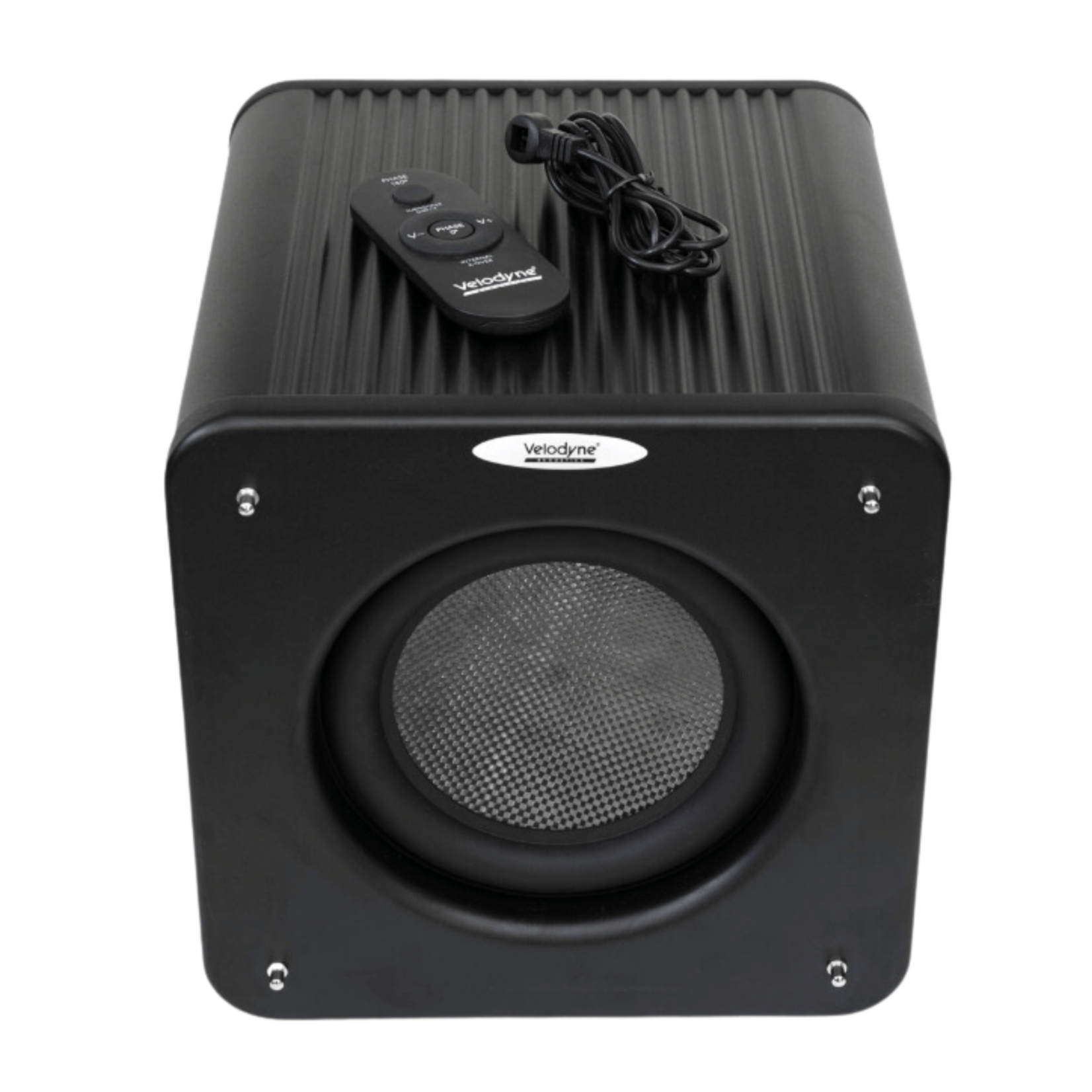

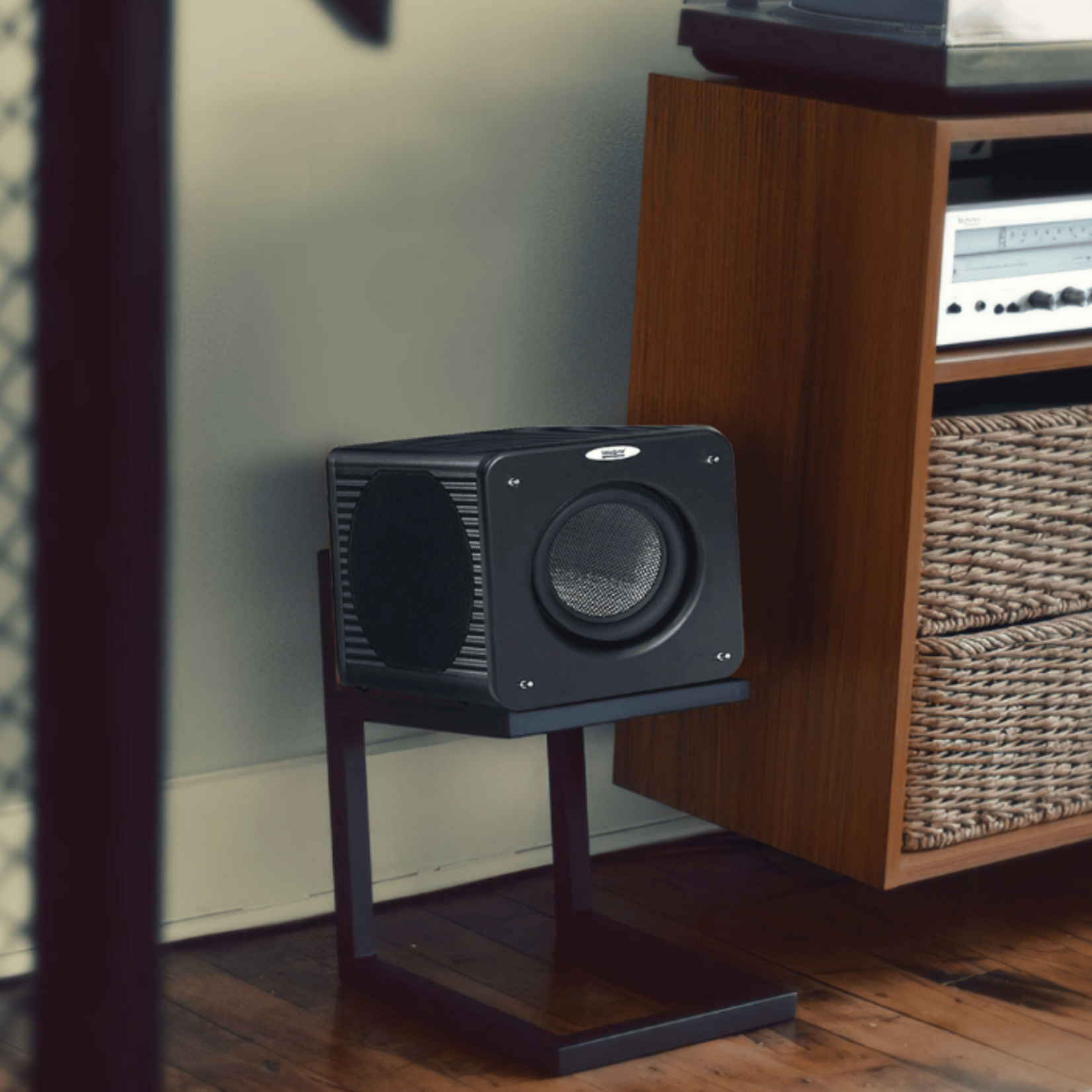

The MicroVee X from Velodyne Acoustics was designed to deliver the best music and home cinema experience from the smallest possible enclosure. At the same time, the subwoofer can be placed discreetly in nearly any home. The Digital Drive Control System (DDCS) and the powerful Class AB amplifier ensure precise and low-distortion bass reproduction.

The ultra-compact MicroVee X combines patented core technologies from the subwoofer experts at Velodyne Acoustics. For example, the Digital Drive Control system and the Energy Recovery System fit into the smallest space and enable impressive low-frequency reproduction with minimal space requirements. With dimensions of 23 x 23 x 25 cm and a 6.5 inch driver, the subwoofer is one of the smallest from Velodyne Acoustics – but with precise bass, it comes up big.

The Features
- A 6.5-inch active driver combined with two side-mounted passive radiators delivers powerful, musical bass.
- Velodyne Acoustics’ Subwoofer Direct feature optionally bypasses the internal crossover, for best performance in any system.
- With 800 watts peak power, the classic Class AB amplifier offers extreme performance levels with very low distortion and precise bass.
- DDCS reduces distortion to 1/6 of the values of comparable subwoofers

Driver 6,5″ forward firing active driver
2 x 6,5” passive radiators
Amplifier Class AB 800 watts dynamic
300 watts RMS power
Frequency Response: Overall
Frequency Response: (± 3 dB) 18 – 300 Hz
32 – 180 Hz
Low Pass Crossover 40 Hz to 200 Hz (12 dB/Octave)
Phase 0 to 180 degrees
Cabinet Design Aluminium profile
Magnet Structure Dual ferrite magnet motor
Woofer 6,5” high excursion double vented basket driver with PP inforced Membrane
Voice Coil Four Layer 2″ / 52mm Voicecoil
Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel
Output Gold plated LFE /RCA
Power Selector Off / Auto / On
Finishes Black/ White
Dimensions (W/H/D) (includes feet and connectors) 23cm x 23cm x 25 cm
Weight (approx) 9 kg
Shipping Weight (approx) 11 kg
